Designing of Fabricated Equipment

NMTS is manufacturing of Pressure Vessels, Heat Exchangers & Columns, Silo & Structure are designed by our competent Design Engineers using latest software like PVElite, HTRI, Solid works and AutoCAD . For these equipments are designed as per international codes like ASME, PD 5500, AD 2000 Merkblatt, IS, EN 13445, PED/97/23/EC, TEMA or as per any other international code.

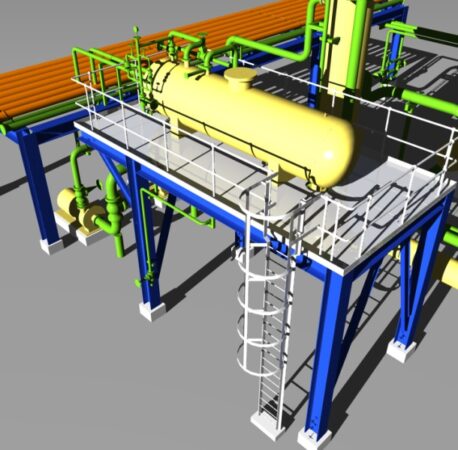

Piping installation at the construction site is done following proper engineering work methods and drawings. The main inputs referred to during piping erection are:

  • Structure drawings [beams and channels are commonly used for the structure].
  • P&ID
  • Piping GA drawings
  • Piping isometrics
  • Piping Support¬†Drawings from Pipe Support Standard.
  • Static & Process Equipment Design.
